unable to find index for $geoNear query

Error

  • mongoDB 데이터

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22

      {
      	"_id" : ObjectId("6245f6edf2aa51bc5bae594c"),
      	"name" : "제주커피박물관 Baum",
      	"location" : {
      		"type" : "Point",
      		"coordinates" : [
      			126.8990639,
      			33.4397954
      		]
      	}
      }
      {
      	"_id" : ObjectId("6245f6eef2aa51bc5bae594d"),
      	"name" : "신산리 마을카페",
      	"location" : {
      		"type" : "Point",
      		"coordinates" : [
      			126.8759347,
      			33.3765812
      		]
      	}
      }


    coordinates는 경도, 위도 순이다.

  • VO
    • VisitJejuLocation

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15

        package kr.pe.playdata.domain;

        import lombok.Data;
        import org.springframework.data.annotation.Id;
        import org.springframework.data.mongodb.core.mapping.Document;

        @Data
        @Document(collection="places")
        public class VisitJejuLocation {

            @Id
            private String id;
            private String name;
            private Location location;
        }

    • Location

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15

        package kr.pe.playdata.domain;

        import lombok.Data;
        import org.springframework.data.geo.Point;
        import org.springframework.data.mongodb.core.mapping.Document;

        import java.util.List;

        @Data
        @Document
        public class Location {

            private String type;
            private List<String> coordinates;
        }

  • 컨트롤러

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33

      package kr.pe.playdata.controller;

      import kr.pe.playdata.domain.VisitJejuLocation;
      import kr.pe.playdata.service.LocationService;
      import org.springframework.beans.factory.annotation.Autowired;
      import org.springframework.data.geo.Distance;
      import org.springframework.data.geo.Metrics;
      import org.springframework.data.geo.Point;
      import org.springframework.web.bind.annotation.GetMapping;
      import org.springframework.web.bind.annotation.RequestMapping;
      import org.springframework.web.bind.annotation.RequestParam;
      import org.springframework.web.bind.annotation.RestController;

      import java.util.List;

      @RestController
      @RequestMapping("/map")
      public class MapController {
          @Autowired
          private LocationService locationService;

          @GetMapping("/findNear")
          public List<VisitJejuLocation> findNear(
                  @RequestParam String longtitude,
                  @RequestParam String latitude,
                  @RequestParam double distance
          ){
              Point p = new Point(Double.valueOf(longtitude), Double.valueOf(latitude));
              Distance d = new Distance(distance, Metrics.KILOMETERS);
              List<VisitJejuLocation> li = locationService.findNear(p,d);
              return li;
          }
      }

  • Service
    • Interface

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11

        package kr.pe.playdata.service;

        import kr.pe.playdata.domain.VisitJejuLocation;
        import org.springframework.data.geo.Distance;
        import org.springframework.data.geo.Point;

        import java.util.List;

        public interface LocationService {
            public List<VisitJejuLocation> findNear(Point p, Distance d);
        }

    • Implements

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22

        package kr.pe.playdata.service.impl;

        import kr.pe.playdata.domain.VisitJejuLocation;
        import kr.pe.playdata.repository.LocationMongoRepo;
        import kr.pe.playdata.service.LocationService;
        import org.springframework.beans.factory.annotation.Autowired;
        import org.springframework.data.geo.Distance;
        import org.springframework.data.geo.Point;
        import org.springframework.stereotype.Service;

        import java.util.List;

        @Service
        public class LocationServiceImpl implements LocationService {

            @Autowired
            private LocationMongoRepo locationMongoRepo;

            public List<VisitJejuLocation> findNear(Point p, Distance d){
                return locationMongoRepo.findByLocationNear(p, d);
            }
        }

  • Repository

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15

      package kr.pe.playdata.repository;

      import kr.pe.playdata.domain.VisitJejuLocation;
      import org.springframework.data.geo.Distance;
      import org.springframework.data.geo.Point;
      import org.springframework.data.mongodb.repository.MongoRepository;
      import org.springframework.data.mongodb.repository.Query;
      import org.springframework.stereotype.Repository;

      import java.util.List;

      @Repository
      public interface LocationMongoRepo extends MongoRepository<VisitJejuLocation, String> {
          List<VisitJejuLocation> findByLocationNear(Point p, Distance d);
      }

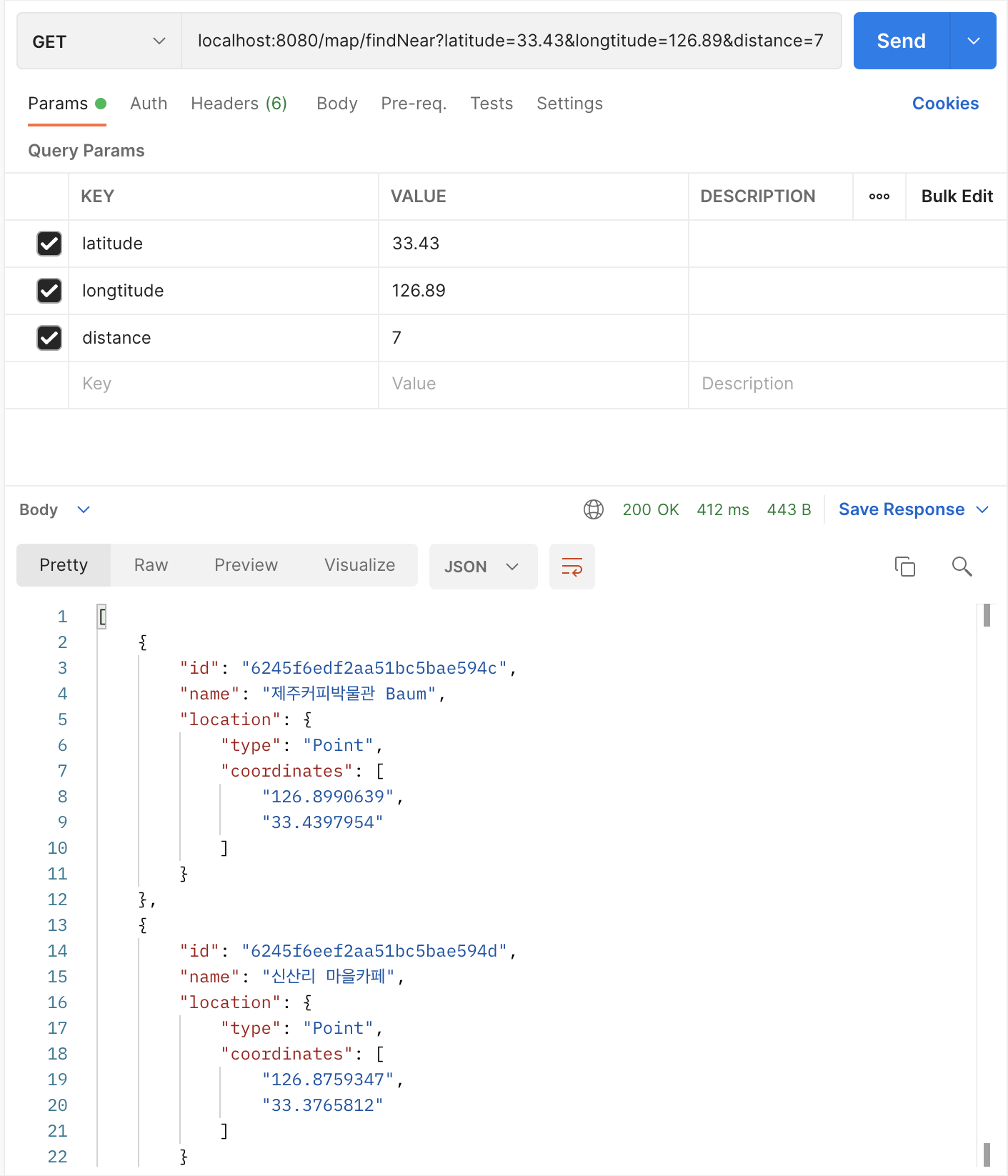

  • 위와 같이 코드를 작성 후 postman으로 다음과 같이 보냈다.

    1

      localhost:8080/map/findNear?latitude=33.43&longtitude=126.89&distance=7

  • 결과는 다음과 같이 에러가 발생하였다.

    1

      planner returned error :: caused by :: unable to find index for $geoNear query' on server xx.xxx.xxx.xxx:27017; nested exception is com.mongodb.MongoQueryException: Query failed with error code 291 and error message 'error processing query: ns=jeju.placesTree: GEONEAR  field=location maxdist=0.0010975 isNearSphere=1


Error 해결

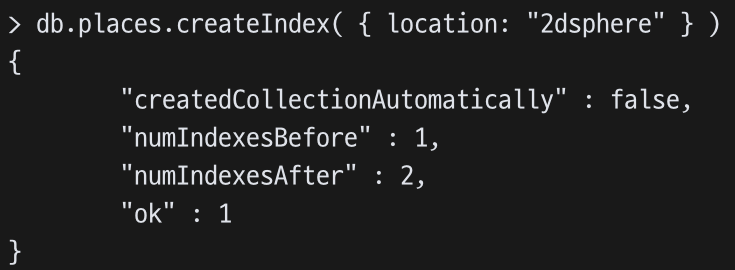

  • mongoDB에 특정 field에 2dsphere index를 생성해줘야 한다.

    1

      db.places.createIndex( { location: "2dsphere" } )


    스크린샷_2022-04-01_오전_4 22 10

    스크린샷_2022-04-01_오전_4 22 36
